Technical Specifications
Product model

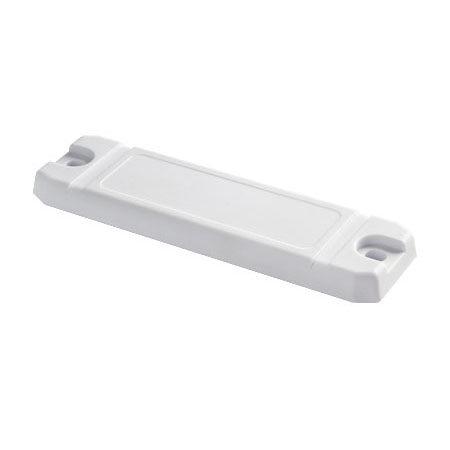

RABS10530
Product category
ABS Anti-Metal RFID Tag Series
RFID protocol
EPC Class 1 Gen 2, ISO 18000-6C
Frequency
(US) 902-928 MHz,(EU) 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128bits, User 0bits, TID96bits
Write endurance
100,000 cycles
Function
Read / write
Data retention
50 years
Applicable surface
metal surface
Read range
0 to 12.0 m - (US) 902-928 MHz, metal surface
Warranty
1 years
Dimensions
105x30 mm, (hole: 2 pcs)
Thickness
7.5 mm
Material
ABS + PC
Color
White
Installation
adhesive backing, cable ties, screws
Weight
26.0 g
Ingress protection
IP68
Storage temperature
-45 C to + 85 C
Operating temperature
-25 C to + 85 C
Certifications
REACH, RoHS, CE
