HF RFID Security Gate
Three-dimensional HF tag reading for library, archive and controlled-exit workflows.
Supports EAS, AFI, DSFID and combined anti-theft modes.
Infrared direction sensing with persistent traffic and alarm records.
Ethernet, RS232, USB and Wi-Fi communication with relay and MOS outputs.
RSG422 Series
| Supported standard | ISO 15693 |
|---|---|
| RF power | 1-8 W, adjustable |
| Passage width | 80-140 cm; 90 cm recommended |
| Anti-theft modes | EAS, AFI, EAS+AFI, DSFID and AFI+DSFID |
| Alarm records | At least 100,000 |
| Alarm | Sound and light standard; voice optional |
| Display | 3.5-inch LCD |
|---|---|
| Communication | Ethernet, RS232, USB and Wi-Fi |
| Network | TCP/IP; static IP or DHCP |
| Linkage outputs | 4 relay outputs and 2 MOS outputs |
| Daily traffic records | At least 3,500 |
| Same-day entry/exit records | At least 40,000 |
| Diagnostics | Network, reader, storage, clock, antenna, temperature and current monitoring |
| Power input | AC 100-240 V, 50-60 Hz |
|---|---|
| Housing | Acrylic, aluminum profile and sheet metal |
| Dimensions | 1660 x 636 x 120 mm |
| Base dimensions | 636 x 120 x 16 mm |
| Weight | Main approx. 22 kg per panel; auxiliary approx. 21 kg per panel |
| Referenced standards | GB 4943.1-2011; GB/T 9254-2008; GB 17625.1-2012; GB/T 17626.2-2018 |

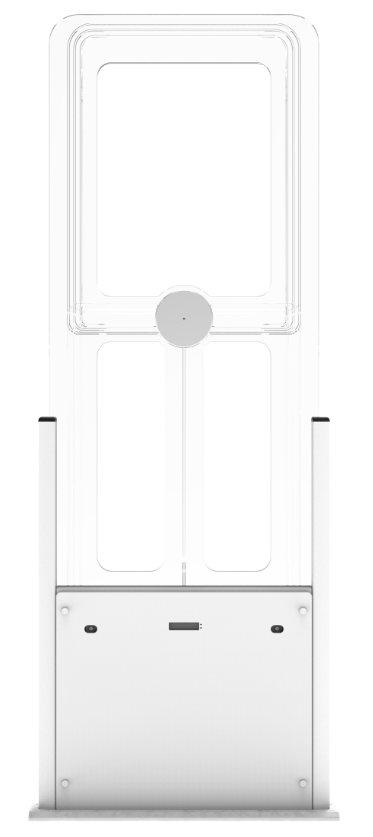

RSG422 Original Configurations
