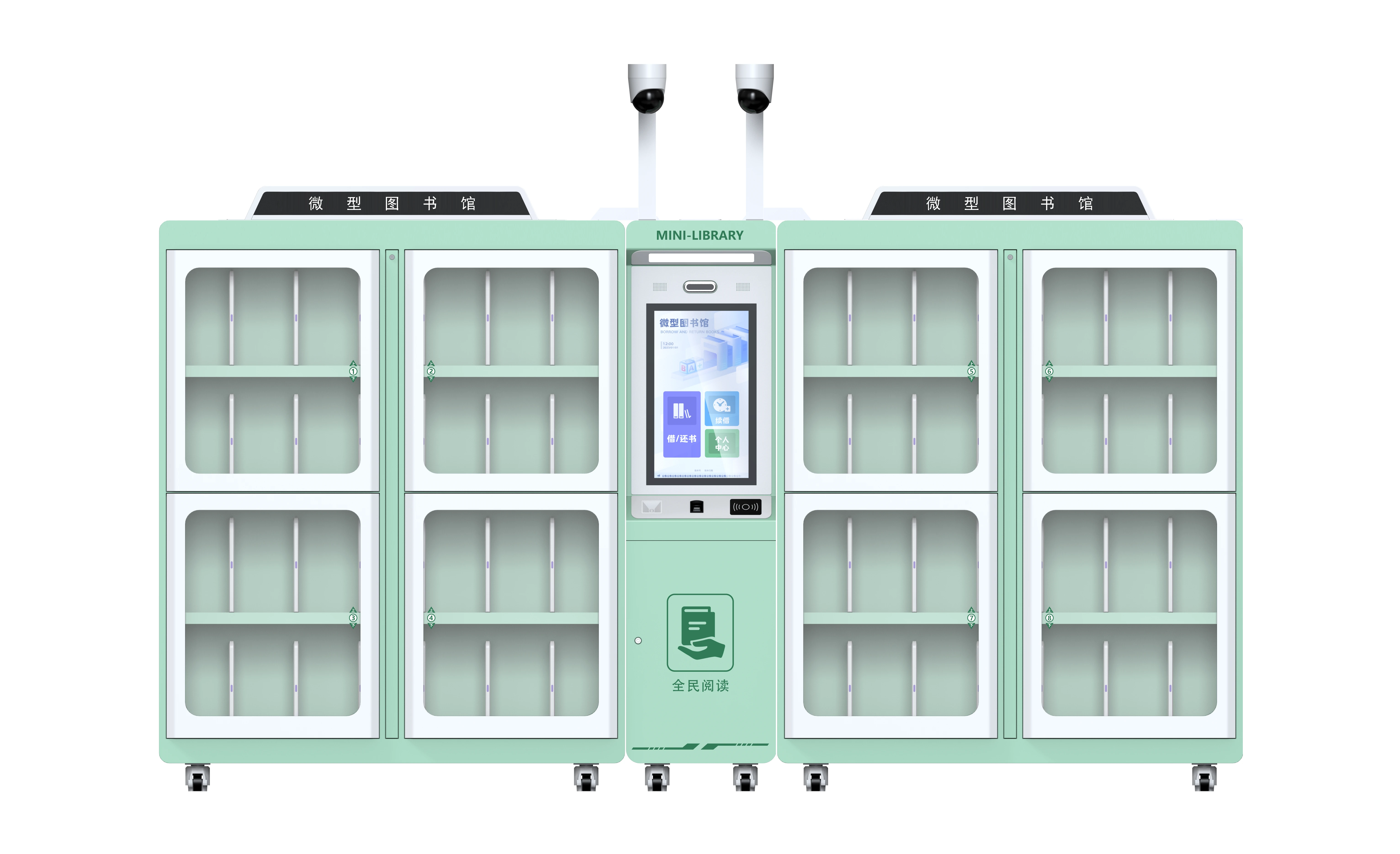

24-hour unattended book circulation with HF or UHF RFID and expandable cabinets.
HF or UHF RFID
Supports ISO 15693-3 or ISO 18000-6C / EPCglobal Gen 2 library-tag projects.
Compartment-Level Control
Four antennas per shelf level support book location and independent door management.
Multi-Book Circulation
Source-rated reading accuracy of at least 99.9% with borrowing and return under three seconds.
Expandable Cabinet System
One main cabinet supports at least four auxiliary cabinets.
RFID & Book Handling
| RFID options | HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2 |
|---|
| Antenna arrangement | Four antennas per shelf level |
|---|
| Read accuracy | At least 99.9% |
|---|
| Compartment crosstalk | No more than 0.1% |
|---|
| Borrow / return time | Under 3 seconds; supports multiple books |
|---|
| Book location | Compartment-level location and independent door management |
|---|
Cabinet, System & Connectivity
| Cabinet configuration | Four levels; one main cabinet supports at least four auxiliary cabinets |
|---|
| Book capacity | Approx. 240-320 books per cabinet |
|---|
| Display | 21.5-inch capacitive touchscreen |
|---|
| Operating system options | Windows, Android, HarmonyOS, Kylin or UOS |
|---|
| Communication | Serial, USB and Ethernet |
|---|
| Network | Wired or Wi-Fi; 4G/5G optional |
|---|
| Optional modules | Video monitoring, LED advertising display and book disinfection |
|---|
Physical, Power & Environment
| Dimensions | Main 430 x 450 x 1632 mm; auxiliary 1330 x 450 x 1632 mm |
|---|
| Power input | AC 110-230 V, 50 Hz |
|---|
| Power consumption | Main 68 W; auxiliary 48 W |
|---|
| Weight | Main 60 kg; auxiliary 160 kg |
|---|
| Material | Cold-rolled steel, at least 1 mm |
|---|
| Operating temperature | -20°C to +60°C |
|---|
| Storage temperature | -30°C to +80°C |
|---|
| Storage humidity | 10-98%, non-condensing |
|---|

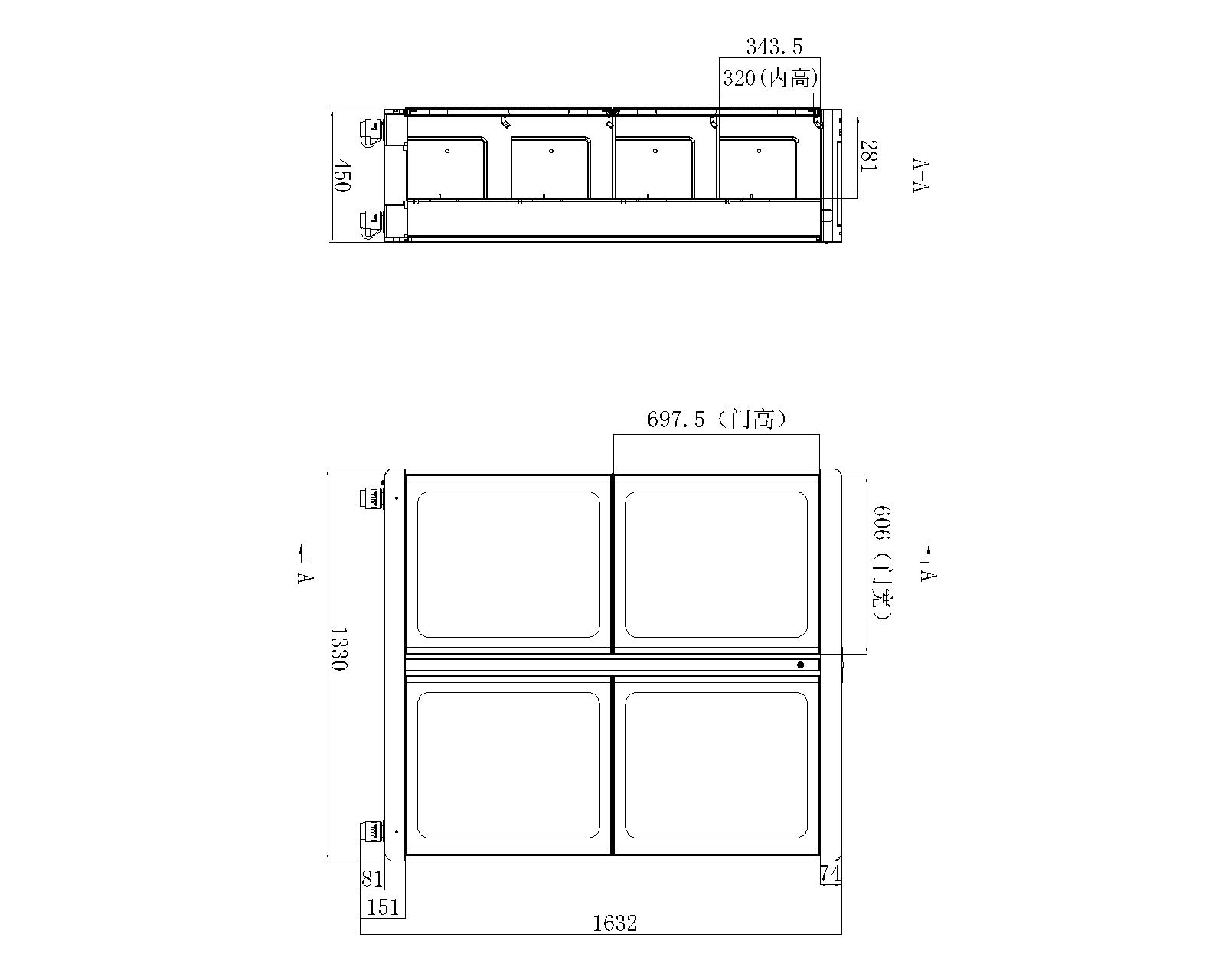

Mechanical Dimensions (mm)
