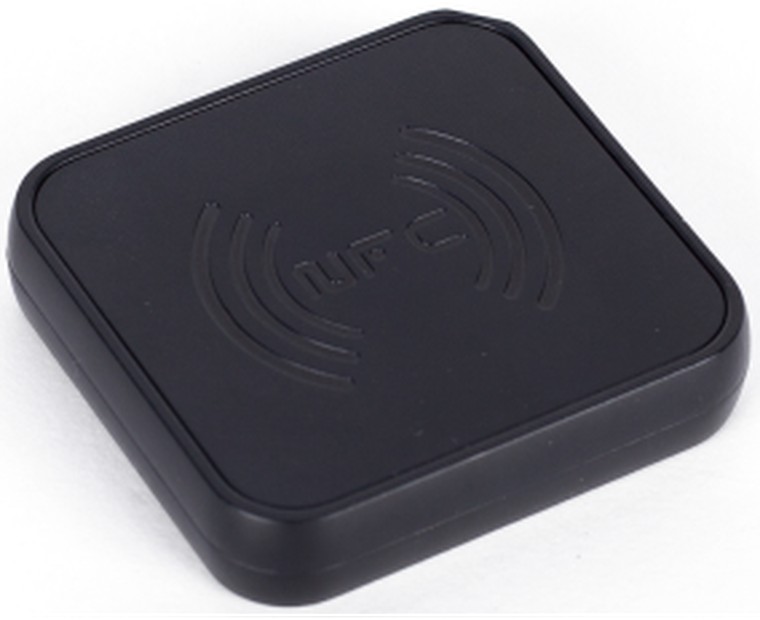

HF Embedded Reader

RU6203

Embedded HF Reader for Custom Equipment Integration

An embedded HF reader option for equipment builders and custom RFID devices where the reader is integrated inside a cabinet, kiosk, or terminal.

Request product match View model index

Key parameters

Working frequency

13.56 MHz

Supported standards

ISO15693, ISO18000-3M3, ISO14443A

Reading distance

8 cm (ISO15693); 5 cm (ISO14443A)

Communication interface

USB

Physical size

49 x 46.1 x 10.5 mm

Application Fit

Where this model usually fits

Product selection should be validated against the workflow, item material, tag type, read-zone geometry, and integration requirements.

Custom kiosk or cabinet RFID integration

Embedded reading inside workflow-specific equipment

Projects where enclosure, software, and RFID behavior must be designed together

Solution Fit

Connect this model to the right operating scene

A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.

Medical / laboratory partners

Sample identity, rack-level reading, custody timestamps, and partner-led validation discussions.

View solution

Project Stack

Do not evaluate this model as a standalone device

Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.

Device & tag layer

Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.

Open layer 2

Middleware layer

Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.

Open layer 3

Application layer

Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.

Open layer

Capabilities

Embedded reader format
Suitable for custom device engineering
Can be paired with antennas, shielding, and workflow software

Specification Notes

Confirm host interface, power, heat, mounting, and antenna layout before enclosure design is finalized.
Embedded readers should be tested inside the final mechanical structure.
Serviceability matters: plan how technicians will access and replace the module if needed.

Ask For

These details help REAOX recommend the right reader, antenna, tag, and integration approach.

Device enclosure plan
Host interface
Antenna layout
Firmware or API requirements

Technical Data

Specifications for engineering review

These parameters are pulled from the current product manuals and should be used for preliminary selection before final project validation.

RFID & Reading

Working frequency

13.56 MHz

Supported standards

ISO15693, ISO18000-3M3, ISO14443A

Reading speed

<= 50 tags per second

Reading distance

8 cm (ISO15693); 5 cm (ISO14443A)

Supported cards

I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70

Anti-collision processing

Supported

Interface, Power & Physical

Communication interface

USB

Power input

5 V, USB powered

Maximum power consumption

0.48 W

Operating temperature

-20 C to 60 C

Physical size

49 x 46.1 x 10.5 mm

Gross weight

Approx. 50 g

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

Source manual: EN_RU6203_Micro_Power_Desktop_Reader_Writer.html

Open original manual
